This lecture is are based on: Microsoft’s documentation

[TOC]

Demo made in class

Architecture of .NET MAUI

  • .NET MAUI stands for .NET Multi-platform App UI.
  • It’s a relatively new cross-platform framework from Microsoft.
  • Shared code base for iOS, Androidm MacOs and Windows.
  • Very well intgrated with Visual Studio.
  • Programming language: C# (already cross-platform!)
  • UI page definition uses Xaml which is a declarative language (you’ve already seen this in previous courses!)

How does MAUI work?

  • Abstracts the details specific to each platform using platform-specific framewors: .NET Android, .NET iOS, .NET macOs, WinUI 3 (Windows)
  • Uses a unified interface called .NET Base to interact with each of these frameworks.
  • The business logic and common UI elements of your App will be using this interface.

  • For Android, iOs and MacOs, the execution environment is implemented in Mono.
  • For Windows, the execution environement is .NET CoreCLR.

Supported platforms:

According to Microsoft’s latest documentation:

Platform Min Version
Windows 10.1809
Mac 10.15
Android 5.0
iOS 11

Pros:

  • Single codebase for all platforms which insures maximum reusability and a consistency across the apps deployed on various platforms
  • Codebase is easier to maintain when the code is centralized (bug fixes are much easier to deploy).
  • The use of XAML/C# makes it easier to code and test your apps.
  • Well documented and large .NET Developer community.
  • Makes the use of the Model-View-ViewModel (MVVM) pattern very easy to use.
  • Provides a solution for platform-specific runtime differences.
Cons:

  • Slightly less performant than native apps.

  • Relatively new (May 2022), which means there’s a few bugs and limitations that are still being addressed by Microsoft.

  • The framework can feel limiting if you choose to architect your apps differently (not MVVM), or if you wish to access new features of a given operating system: you depend on Microsoft’s integration of new technologies to the framework.

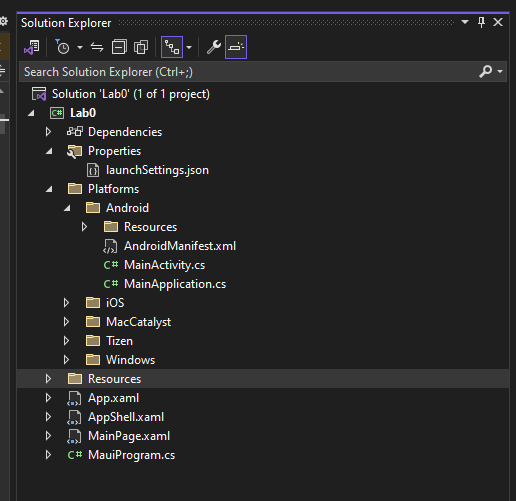

Overview of a MAUI Project

  • Platforms: This folder contains platform specific code:

  • Resources: this folder contains all images, fonts, etc. are stored. MAUI will be responsible of embedding this content to each platform with its specificity.

XAML

  • XAML is a declarative markup language which declares the UI components of the App.
  • “Declarative” means it’s non-procedural: “The focus is not how you want the job done, but what the result you want to obtain”.
  • You cannot “debug” it, although the compiler is getting better at helping us find mistakes.
  • Other examples of declarative languages: SQL, HTML, XML, etc.
  • It’s also used in WPF and UWP.
  • Extension is .xaml
  • For every xaml file, you have an associated C# code behind with the same name:

Example MainPage.xaml:

  • Contains the definition of the main page.
  • Note that the ContentPage is definied using the following attributes:
    • xmlns : The XML namespace is the default namespace in every XAML file, it refers to the .NET MAUI classes (ContentPage, Button, VerticalStackLayout)
    • xmlns:x : The secondary namespace refered to as x in the file, it is associated with elements specific to XAML. This allows MAUI apps to support constructs created by other frameworks (WPF, UPF, etc.) - originally created in 2006.
    • x:Class: One of the constructs introduced by XAML allowing a binding between the XAML Content Page and the C# class definied in the Code Behind.
    • We will see more on data binding on lecture 3.
<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="MauiApp1.MainPage">

    <? Page content definition... ?>

</ContentPage>

Code Behind

  • Similar to WPF, MAUI uses code behind associated with each XAML file which definies the UI element (“How it should be done”).

Example MainPage.xaml.cs:

  • It contains the constructor of the ContentPage inherited page.
  • You’ll notice that the MainPage (or any user definied page) inherits from the ContentPage class.
  • The user definied page, will typically contain variables specific to the App that is interfacing with the model (classes and business logic).
  • It’s generally good practice to extract any business logic away from the code behind and add it to a model class.

namespace MauiApp1;

public partial class MainPage : ContentPage
{
	int count = 0;

	public MainPage()
	{
		InitializeComponent();
	}
    /// Content ...
  • Note that you can declare and define the UI elements in the code behind without declaring it in the XAML and without calling InitializeComponent() in the constructor.

public partial class MainPage : ContentPage
{
    int count = 0;

    public MainPage()
    {
        Image image = new Image
        {
            Source= "dotnet_bot.png" ,
            HeightRequest=185,
            Aspect = Aspect.AspectFit
        };
        Label label = new Label
        {
            Text = "Hello, World!"
        };
        Label label2 = new Label
        {
            Text = "Welcome to &#10;.NET Multi-platform App UI"
        };


        Button CounterBtn = new Button
        {
            Text = "Click me",
            VerticalOptions = LayoutOptions.CenterAndExpand,
            HorizontalOptions = LayoutOptions.Center
        };
        CounterBtn.Clicked += async (sender, args) => OnCounterClicked(sender, args);


        Content = new VerticalStackLayout
        {
            Children =
                {
                    image,
                    label,
                    label2,
                    CounterBtn
                }
        };
    }

}

Hot Reload

  • One on the most convinient features of .NET MAUI Xaml is Hot reload which enables you to visualize modifications of the UI without stopping and re-building the app.
  • Topic of Lab0.

The hot reload feature works for debugging on:

  • Windows Machine (WinUI)
  • iOS Simulators
  • Android Simulators
